AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display

Product Highlights

• Folding 10.1" IPS LCD Display
• 2X 3G-SDI & 2x HDMI Inputs
• Supports 1080p60 Video In/Out
• SD Card/USB-A Recording, 2X Mic Inputs
• Audio Mixing, Multiview Output
• T-Bar, Auto & Cut Transitions
• Audio Mixing, Multiview Output
• Compact 4-Channel Video Switcher

Overview

The Shark S4-PLUS 4-Channel SDI/HDMI Video Switcher with 10.1" IPS Display features a folding design with a 10.1" IPS LCD screen. It supports up to 1080p60 video input and output and is embedded audio which allows video mixing when you use a stereo 3.5mm mic/line input. Some of its control options include T-bar, IP control via LAN port as well as push buttons.

Features of AVMTRIX Shark S4 Plus

10.1' Full HD IPS Display

The switcher features a 10.1"1920X 1080 IPS Display that allows you to look at your program, audio meters, multiview, menu configuration and much more.

USB and SD Card Recording

You can record your program either to an SSD or flash drive in MP4 format by using the USB-A recording output

Live Stream via Ethernet

The Avmatrix Shark S4 Plus comes with a LAN which supports social platforms such as Twitch, Facebook,Youtube etc.

Various Interfaces

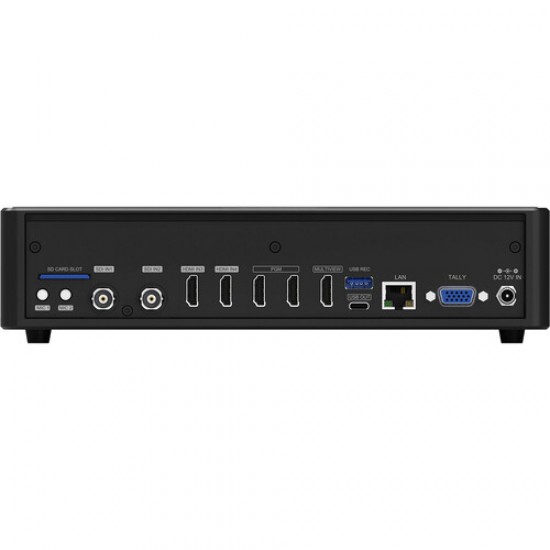

The Avmatrix Shark S4 Plus has multiple interfaces such as  3G-SDI inputs, two HDMI inputs, Multiview Output, Audio Inputs, Recording ports. You can configure all your outputs pass input, clean program as well as color bars.

USB Capture & Streaming

The Shark S4 Plus comes with a built-in USB-C port which can be used to connect the switcher to your computer through the USB capture and you can use softwares such as Skype, VLC or OBS.

Other features include:

Import up to 39 default patterns, 16 imported images,16 captures images as well as two color generators through the USB port.

In the Box

• AVAMATRIX Shark S4 PLUS 4-CHannel SDI/HDMI Video Switcher with 10.1" IPS Display
• USB-A to USB-C Cable
• Tally Connector
• USB-A to USB-C Cable
